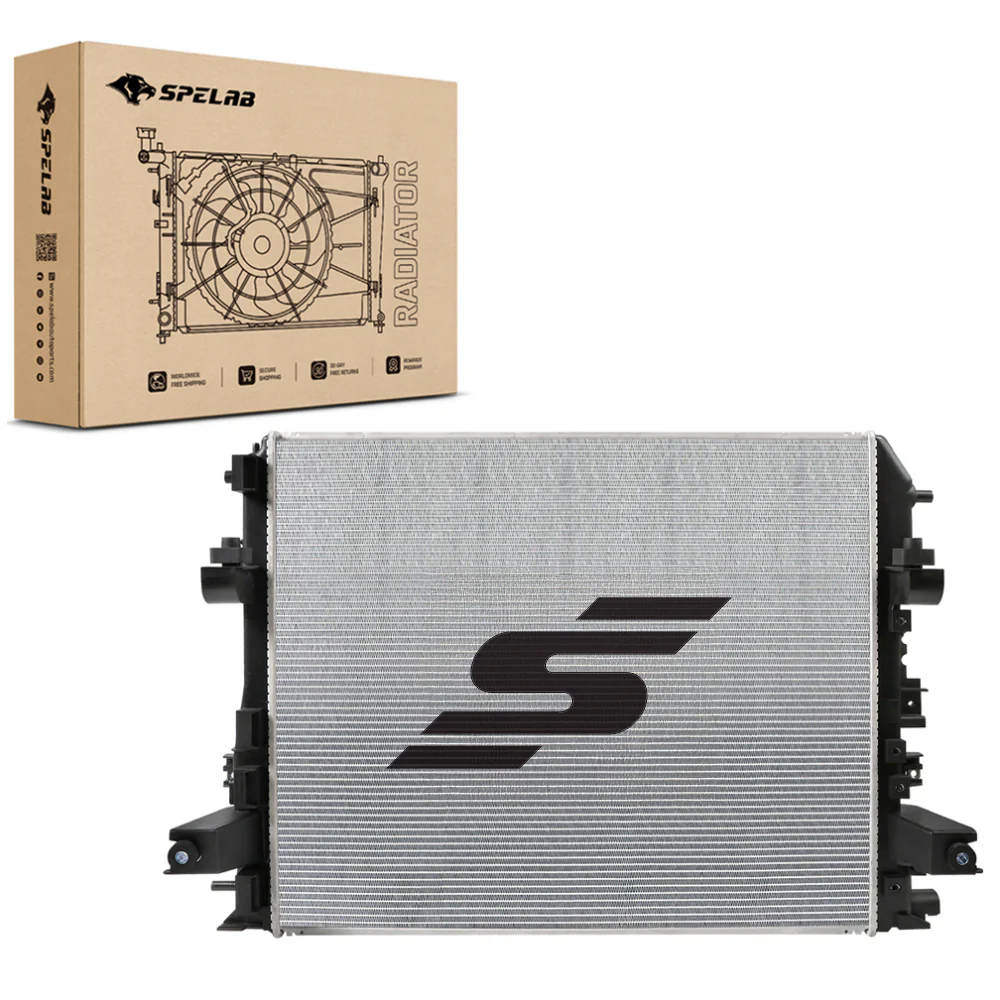

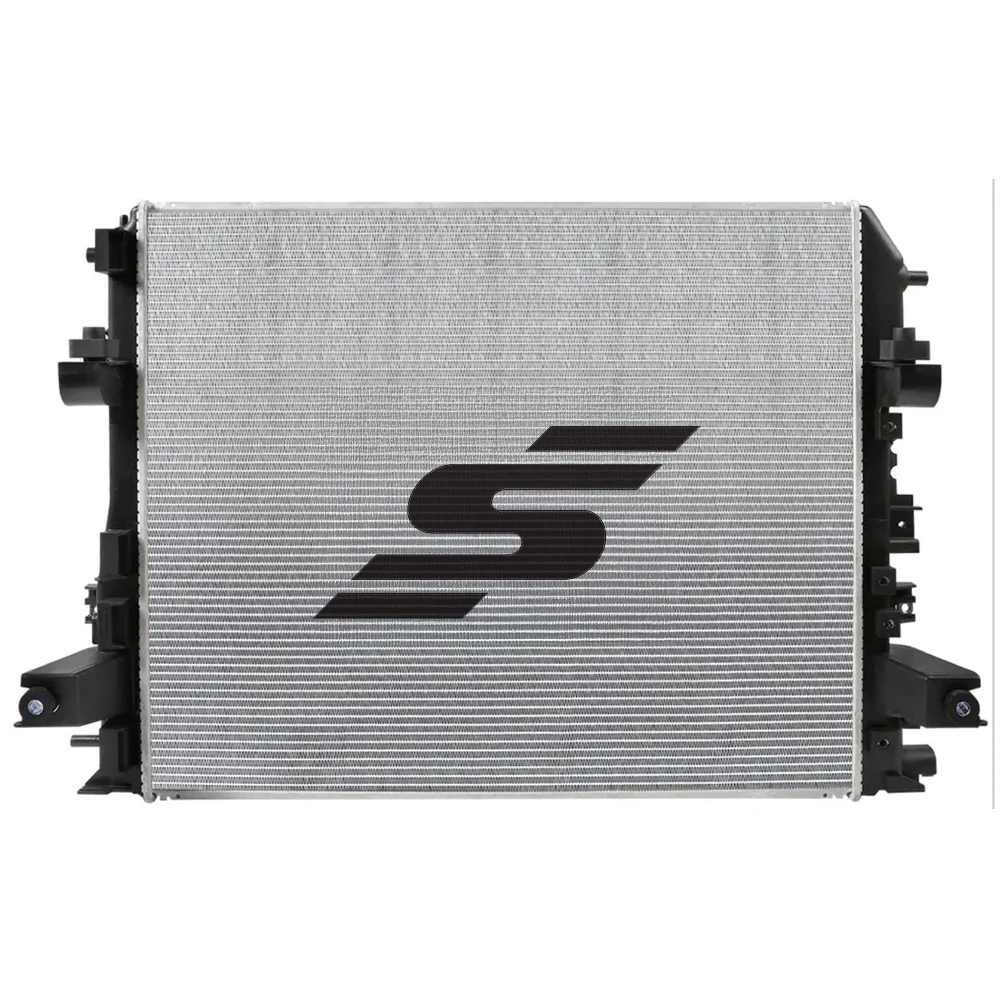

Radiator - 2014-2019 3.0L EcoDiesel Ram 1500 | SPELAB

Radiator - 2014 2015 2016 2017 2018 2019 3.0L EcoDiesel Ram 1500 | SPELAB

Don't just replace the failed radiator in your 2014-2019 3.0L Ecodiesel with a stock replacement, upgrade it with the SPELAB Radiator #CS08097. Designed for a simple bolt-on installation, SPELAB's Radiators look like a factory replacement, but are upgraded to be stronger and better than the factory unit. The SPELAB Cool Radiators are built to give you a long-lasting direct-fit option to protect your engine and cooling system.

Details:

Brand: SPELAB
SKU: SPCS08097
Color: Black
Type: Radiator for 2014 2015 2016 2017 2018 2019 Ram 1500 3.0L EcoDiesel
Engine: 3.0L V6 Turbocharged

TECH SPECS :

Bottom Hose Fitting (in): 1 3/4 Right
Top Hose Ftting (in):1 1/2 Left
Core Length (in): 27 1/2
Core Material: Aluminum .
Core Thickness (in): 1 1/4
Core Width (in): 2111/16
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 2211/16
Inlet Width (in): 1 5/8
No. Of Rows: 1
Outlet Length (in): 22 11/16
Outlet Width (in): 1 5/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: 0.E.M. Style Plastic Tanks & Aluminum Core

Features:

High Efficiency Core
The SPELAB Cool Radiator is built with a high-efficiency core that has more fins per inch, and heavy-duty tubes to maximize cooling potential.

Internal Reinforcements
Manufactured using special aluminum brazing techniques, the SPELAB Cool Radiator Features internally reinforced end tubes that have additional strength at the outside corners where the core is most vulnerable.

Gasket Design
Using a proprietary rubber gasket to allow for expansion, contraction, and flex is one more reason the SPELAB Cool Radiators are built to last. The gasket is a common failure point in many OE radiator designs.

Revised End Tanks
For added strength and durability the SPELAB Cool Radiators feature revised end tanks. With reinforcement ribs added to weak points, the plastic mix includes a fiber reinforcement that is added during construction to increase longevity and help eliminate another failure point.

Upgraded Mounting Points
To make sure the SPELAB Cool Radiator is securely mounted in the same location as your stock radiator, the integrated mounting points have been strengthened to add durability.

---tab FAQ---

Q: Will this fit my Ram 1500 EcoDiesel?

A: Yes, this radiator fits 2014, 2015, 2016, 2017, 2018, and 2019 Ram 1500 trucks equipped with the 3.0L V6 Turbocharged EcoDiesel engine.

Q: Does this radiator require cutting or drilling?

A: No, this is a direct bolt-on replacement designed to fit the factory mounting points and hose connections perfectly.

Q: What material is the core made of?

A: The core is made of high-quality aluminum with a thickness of 1-1/4 inches, designed for efficient heat dissipation.

Q: Are the end tanks durable?

A: Yes, the end tanks are made from a revised plastic mix that includes fiber reinforcement. This strengthens the tanks and ribs, reducing the likelihood of cracking and leaks.

Q: What does "Cross Flow" mean in the specs?

A: Cross flow refers to the direction of coolant flow through the radiator core. In this design, coolant flows horizontally from one side tank to the other, which is efficient for the Ram 1500's cooling configuration.

2014-2018 3.0L Ecodiesel Applicable Products

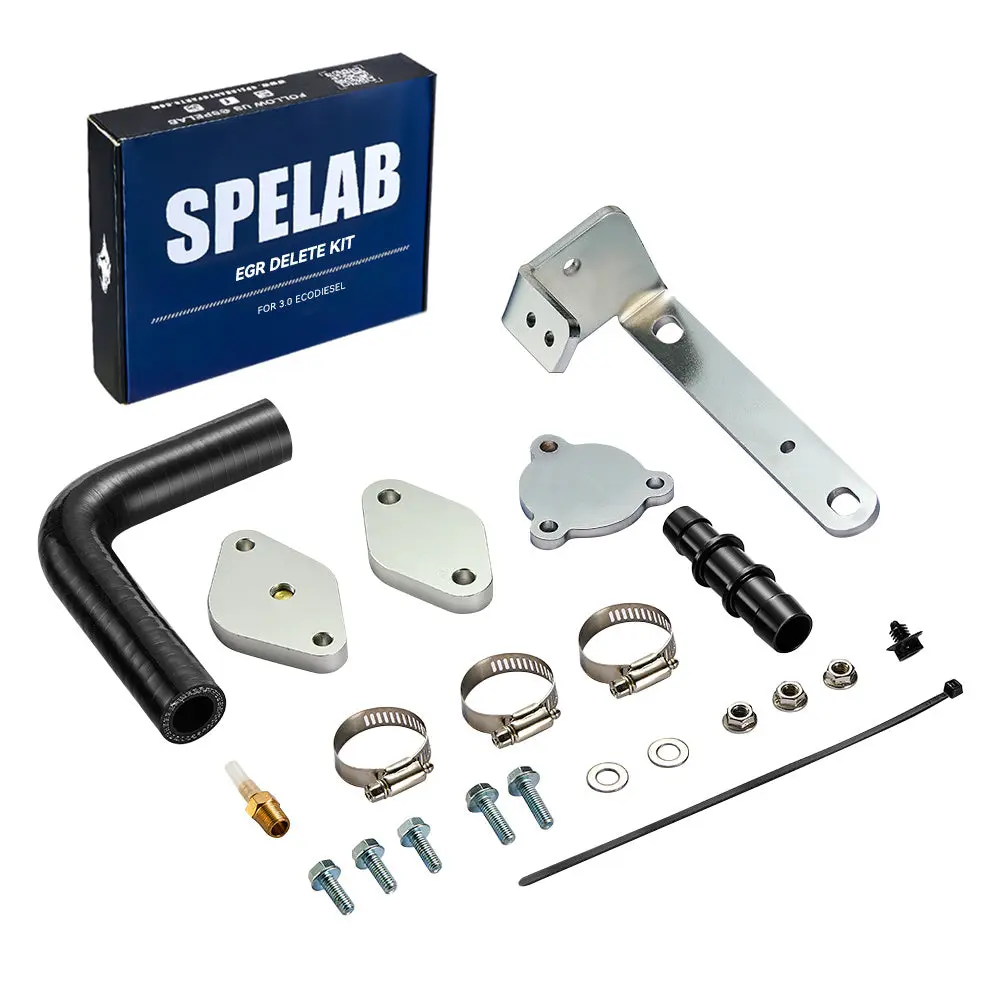

EGR Valve & Cooler Delete Kit For 2014-2018 Dodge Ram 1500 EcoDiesel | SPELAB
